Very high-precision fine pipes

Features of very high-precision fine pipes

  Very high-precision fine pipes SUS pipes Copper alloy pipes Nanshin's technology
Precision ◎
±0.003 or less as standard
△
About ±0.01
△
About ±0.01
A level of precision not possible using machine tools and other methods can be controlled with mass production.
Adjusting hardness ◎
Can be adjusted
×
Cannot be adjusted
×
Cannot be adjusted
It can be made harder than hardened metals or as soft as brass.

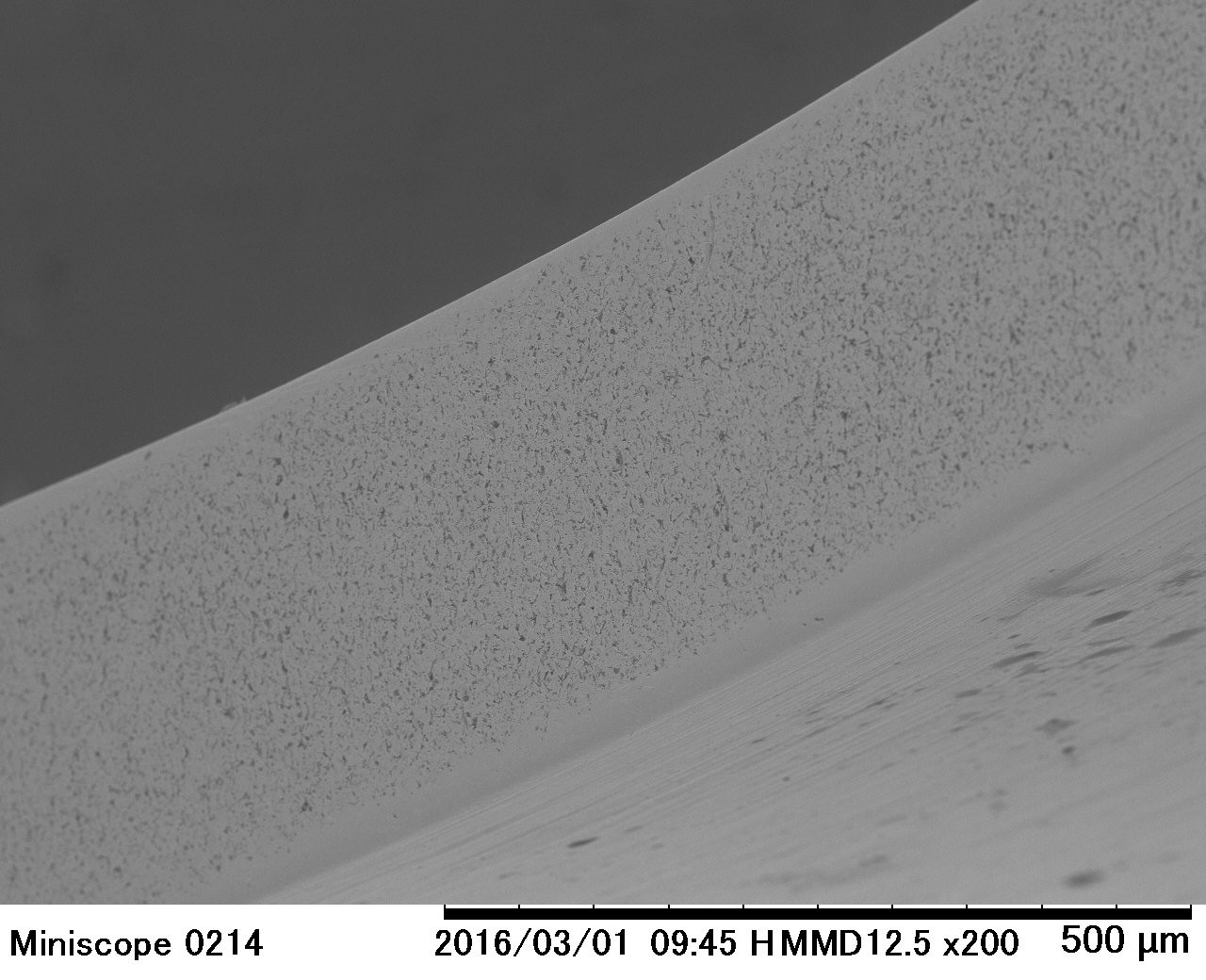

Internal roughness ◎
Ra0.1 or less
×

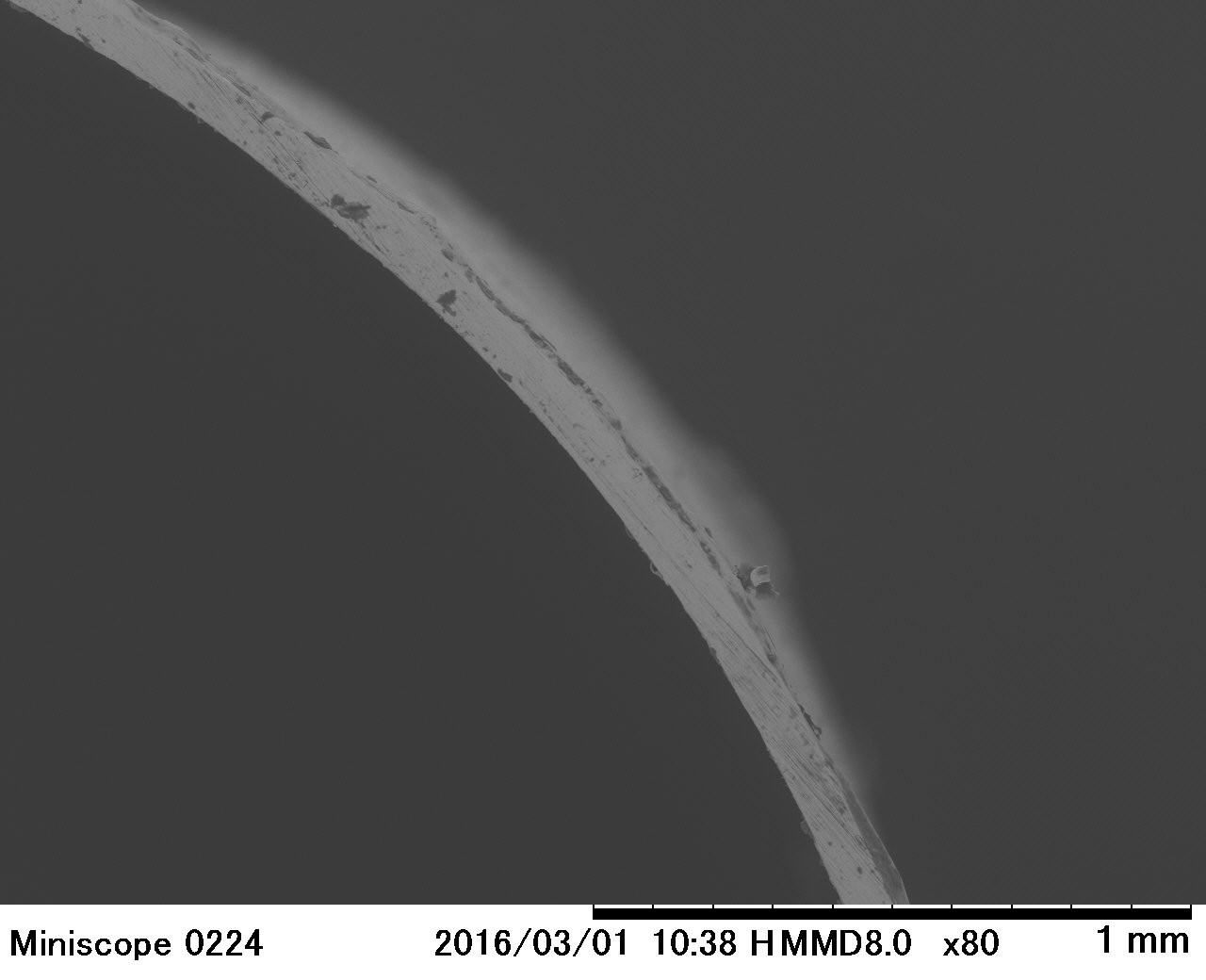

Occurrence of joints and lines. Needs to be polished.
△
Ra0.1 or more
Can be made with a very smooth inner surface and no tool marks or seams (joints).
Multilayer technology ◎
The inner surface can be evenly plated.
×
The inner surface is difficult to plate evenly.
△
Difficult to clad (laminate) or handle flexibly.
This is a diverse multilayer technology made possible by electroforming. For example, the inner surface can be thickly plated with gold (2 μm or more). Depending on the material, electroforming can even be performed on insulating materials.
Wall thickness
(Sheet thickness)
◎
Flexible control is possible.
×
Difficult to adjust above JIS standards.
×
Difficult to adjust.
We have managed to control the wall thickness from 0.01 mm to more than 3 mm by taking advantage of electroforming and adjusting the voltage and current.
Aspect ratio ◎
A long and even fine pipe is possible.
×
Extremely thick and thin walls are not possible.
△
Difficult to maintain precision of thick and thin walls.
As opposed to machine-tool processing, bending and semi-seamless pipes, pipes that exceed the normal limits of aspect ratio can be made.

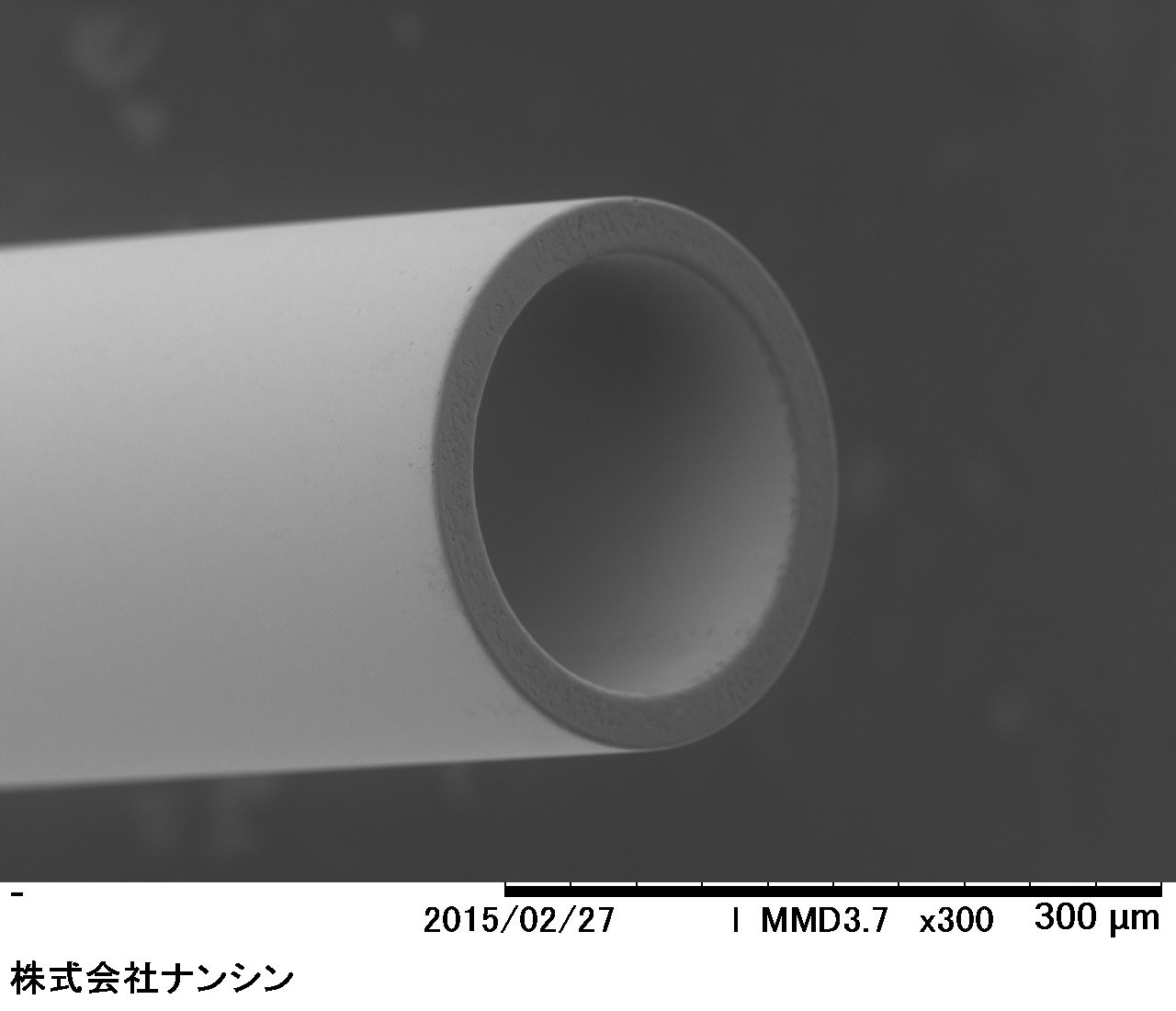

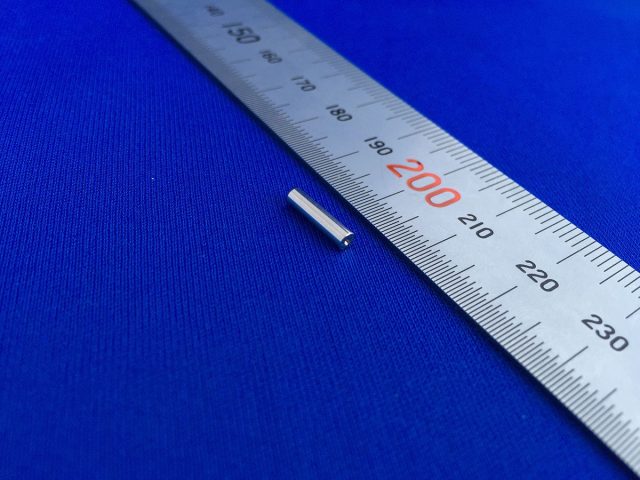

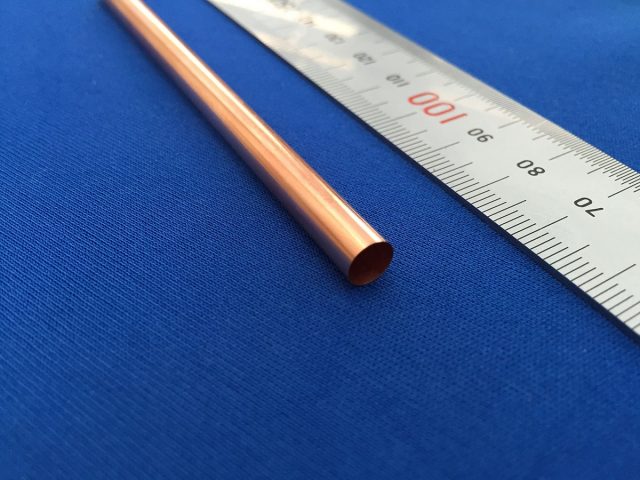

What are very high-precision fine pipes?

As indicated by their name, they are very precise, very small metal pipes.
They have several small dimensions such as their outer diameter, inner diameter, wall thickness (sheet thickness), etc., but this is a surprising technology that achieves precisions that are not possible with machine-tool processing and drawing processes.
Also, it is not just that they are small, the ability to control the wall thickness (sheet thickness) is also a feature.

Basic specifications

Material composition Nickel, copper, platinum, etc.
Thin film materials (multilayer electroforming) Nickel, copper, gold, platinum, etc.
Outer diameter 0.06 ~ 10.00mm
Inner diameter 0.04 ~ 9.00mm
Total length 0.5 ~ 500mm
Wall thickness(Sheet thickness) 0.010 ~ 3.0mm
Outer diameter precision ±0.003 mm as standard. ※ ±0.0005 mm is possible depending on the size.
Inner diameter precision ±0.003 mm as standard. ※ ±0.00025 mm is possible depending on the size.
Hardness (for nickel products) Hv.200~700 ※Can be controlled in accordance with customer's request.
Pipe internal roughness
Ra:0.1 or less as standard. ※ About Ra:0.03 is possible depending on the size.
  • In-house integrated production: We have our own electroforming plant and an integrated production system from production of materials to shipping.
  • Prototype development to mass production: We can handle orders from a single prototype to mass production exceeding 100,000 units.
  • High-variety capability: We accept orders from customers and separate them according to their specifications at the 0.001 mm level and according to their tolerance. We think of high-variety orders as being a matter of course.
  • Conforming to ISO: We deliver reassurance with monozukuri and a management system conforming to ISO9001 and ISO14001.

Past products

※Click the image to see a larger version.

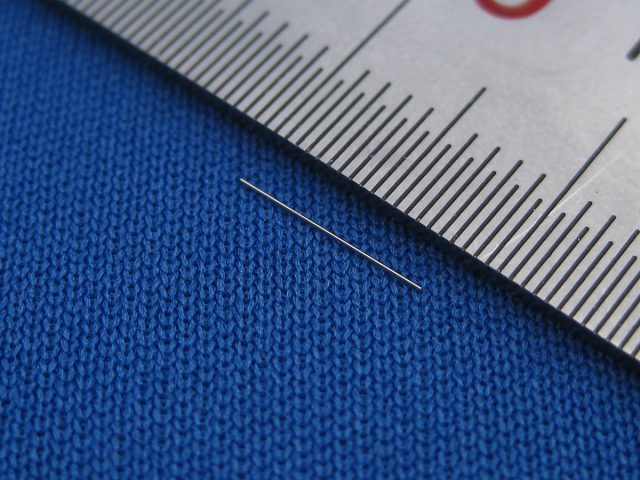

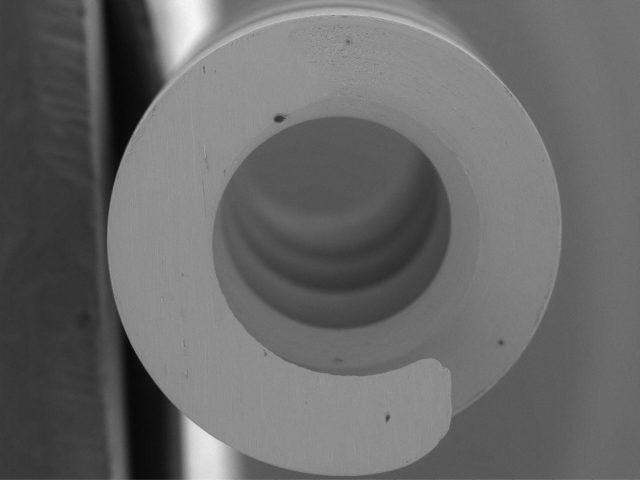

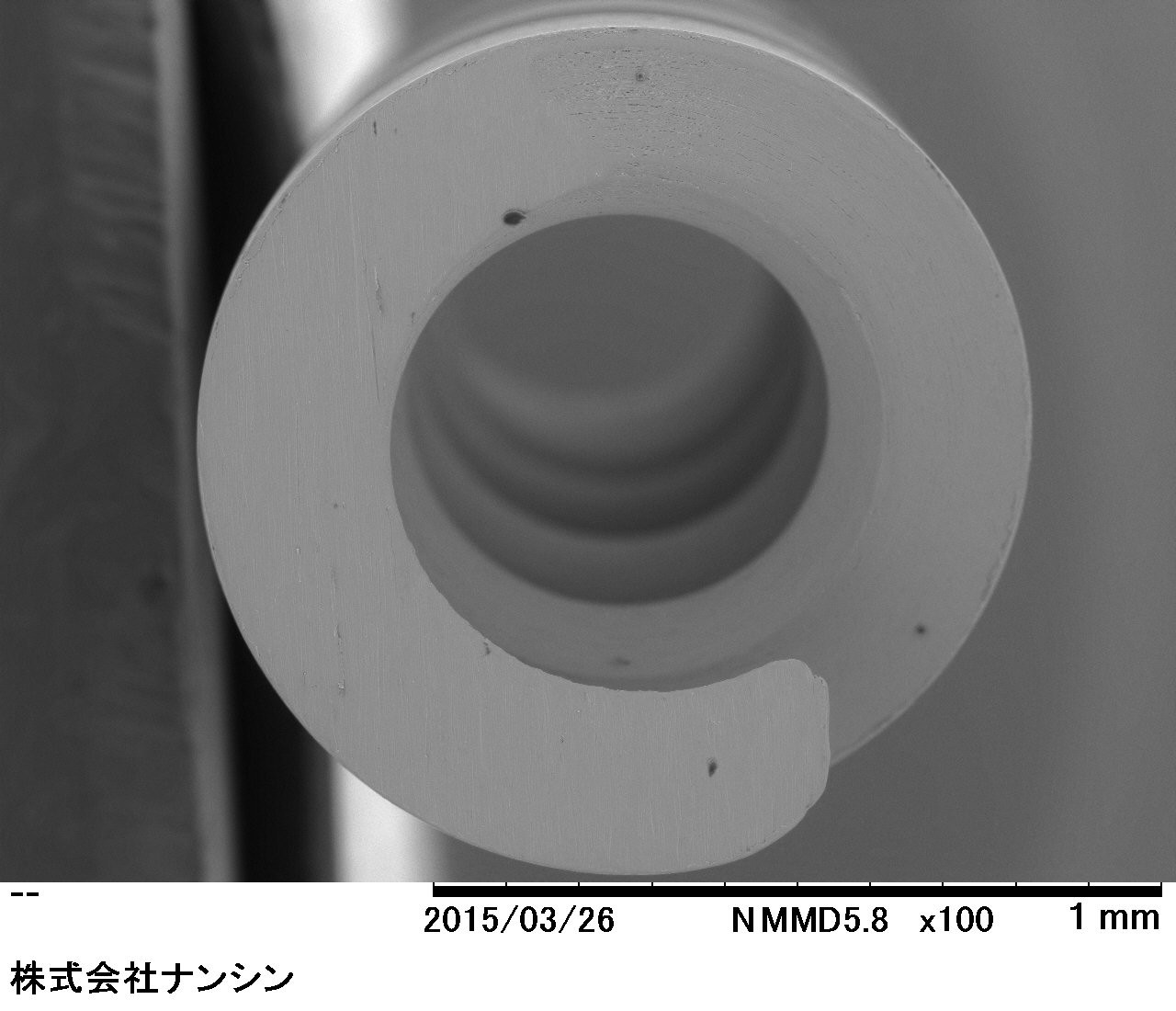

Nozzles (straight/tapered)
Product name Nozzles (straight/tapered)
Industry Machinery and equipment industry/Analytical instrument industry
Material Ni
Size Outer diameter0.5~ Inner diameter0.05~mm
Precision ±0.003mm
Lot quantity 1 unit to 10,000 units
Features The inner surface has a surface roughness of Ra.0.1 or less which is similar to that of a mirror surface. Effective for liquids, gases, lasers as well as being used as guide pins for fine wires, etc.
Insert for a fine mold
Product name Insert for a fine mold
Industry Precision molding
Material Ni
Size Outer diameter1.0~ / Inner diameter0.1~
Precision ± 0.003 or less
Lot quantity 1 unit to 100 units
Features Same level of hardness as mold material (about Hv.500), and an inner surface roughness of Ra.0.1 or less.

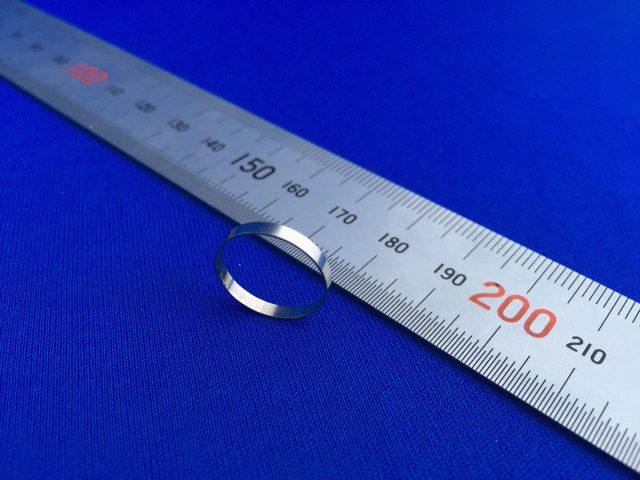

Ring
Product name Ring
Industry Next-generation energy industry
Material Ni
Size 5.0mm~
Precision 0.005mm
Lot quantity 1 unit to 100 units
Features Can customize to sizes outside of JIS standards. Metal rings with excellent hardness and elasticity.
Insert molding nozzle
Product name Insert molding nozzle
Industry Analytical instrument industry
Material Ni-Resin
Size -
Precision -
Lot quantity 20 unit to 1,000 units
Features While taking advantage of the fine pipe features, the handling is improved with insert molding.
Thin-wall pipe with hole in side
Product name Thin-wall pipe with hole in side
Industry Machinery and equipment industry
Material Ni
Size Outer diameter5mm~ Wall thickness0.05~
Precision ±0.005
Lot quantity 1 unit to 1,000 units
Features This is a pipe with a hole in the side that has no burrs or deformation even though it has a thin wall.
Array-type multi-core tube
Product name Array-type multi-core tube
Industry Fiber optic communication industry / machinery and equipment industry
Material Ni
Size Inner diameter0.1~
Precision ±0.003mm
Lot quantity 1 unit to 100 units
Features This is a single row of fine tubes made with electroforming technology.
Split sleeve
Product name Split sleeve
Industry Fiber optic communication industry
Material Ni
Size Outer diameter0.5~ Inner diameter0.3~ mm
Precision ±0.005
Lot quantity 1 unit to 10,000 units
Features Performance can be maintained with almost no corrosion or deterioration even in harsh environments.
スリーブ / 軸受
Product name Sleeve / bearing
Industry Fiber optic communication industry / machinery and equipment industry
Material Ni
Size Outer diameter0.5~ Inner diameter0.3~ mm
Precision ±0.001
Lot quantity 1 unit to 100,000 units
Features We can adjust the wall thickness (sheet thickness) according to your needs.
Multi-core ferrule
Product name Multi-core ferrule
Industry Fiber optic communication industry
Material Ni
Size Outer diameter1.50 Inner diameter0.125 mm
Precision Outer diameter0.0005mm Inner diameter0.0005mm Pitch0.01mm
Lot quantity 1 unit to 100 units
Features Next-generation multi-core technology
We can adjust the hole positions according to your needs.
Special metal ferrule plated with gold
Product name Special metal ferrule plated with gold
Industry Fiber optic communication industry
Material Ni-Au
Size Outer diameter2.5 / Inner diameter0.05~
Precision Outer diameter0.0005mm Inner diameter0.0005mm
Lot quantity 1 unit to 10,000 units
Features Special size metal ferrules are possible. We can customize specifications such as the inner diameter, outer diameter, length, etc.
Metal ferrule
Product name Metal ferrule
Industry Fiber optic communication industry
Material Ni
Size Outer diameter2.5 / Inner diameter0.05~
Precision Outer diameter0.0005mm Inner diameter0.0005mm
Lot quantity 1 unit to 10,000 units
Features Performance can be maintained with almost no corrosion or deterioration even in harsh environments.
